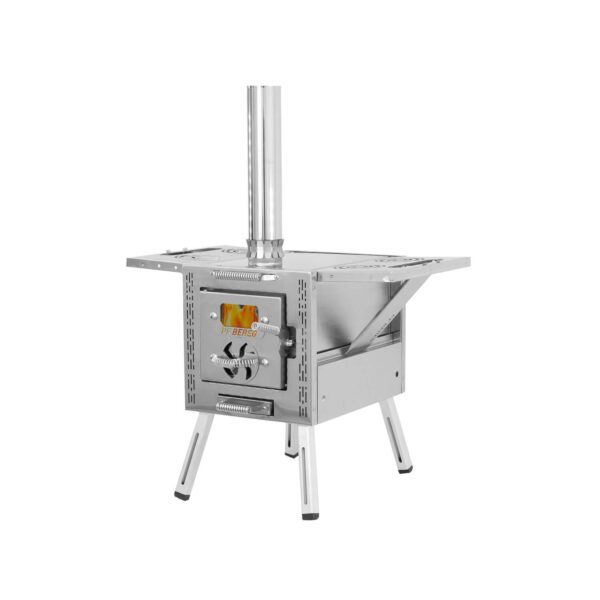

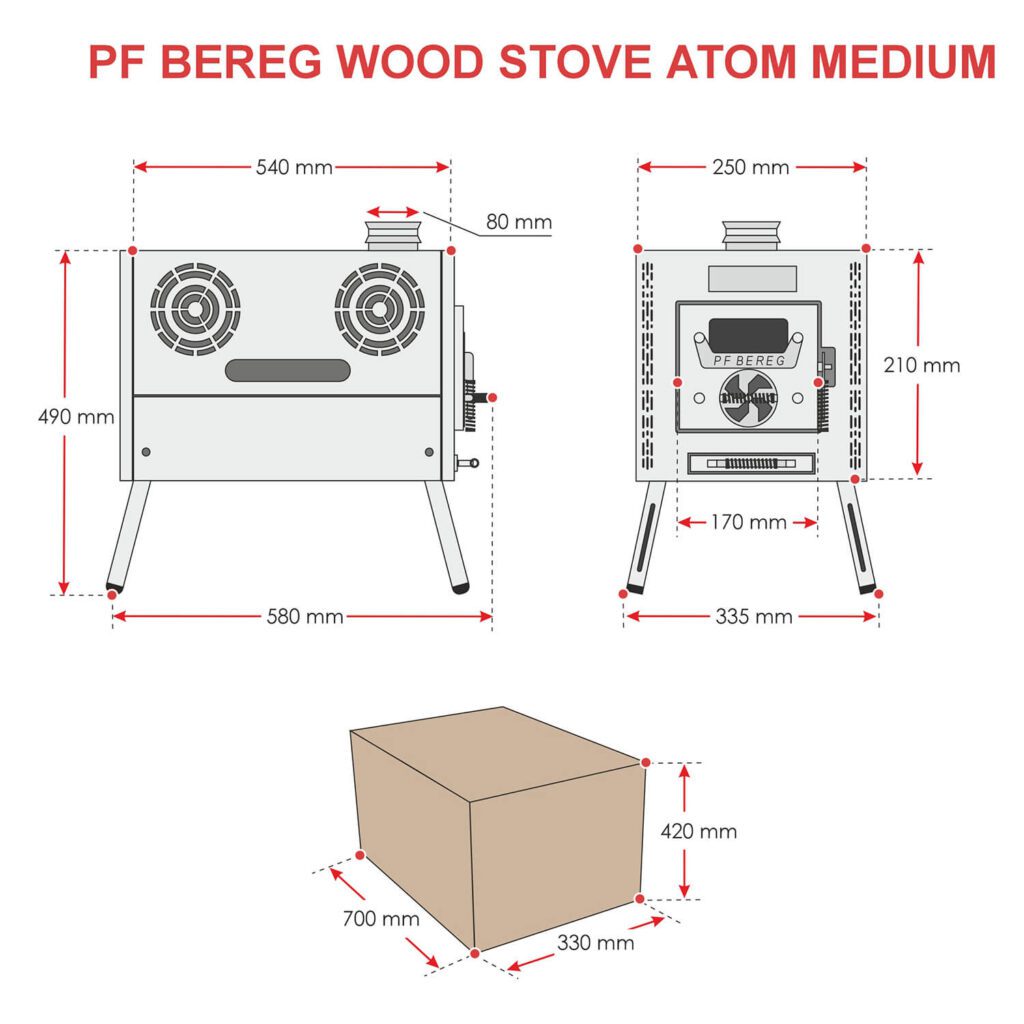

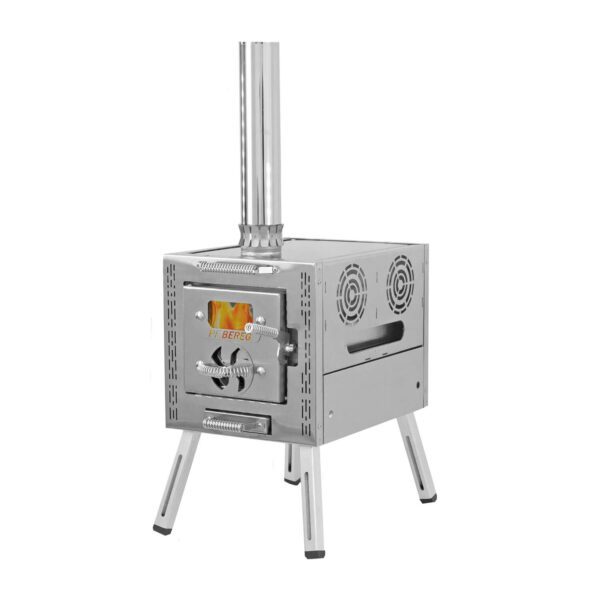

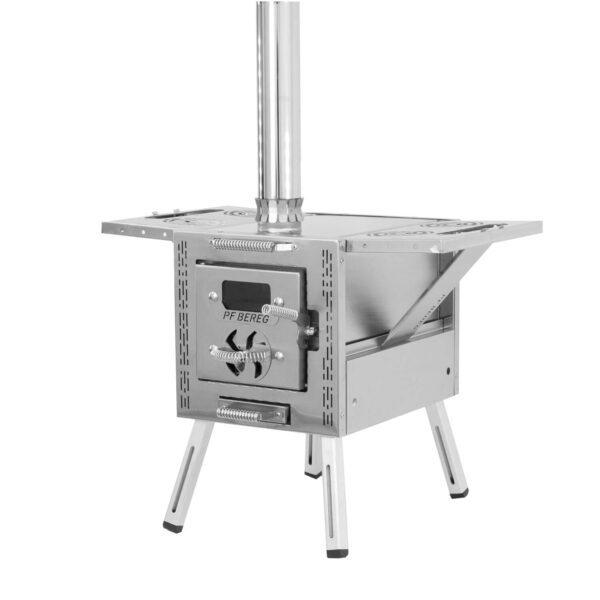

PF Bereg Wood Stove Atom

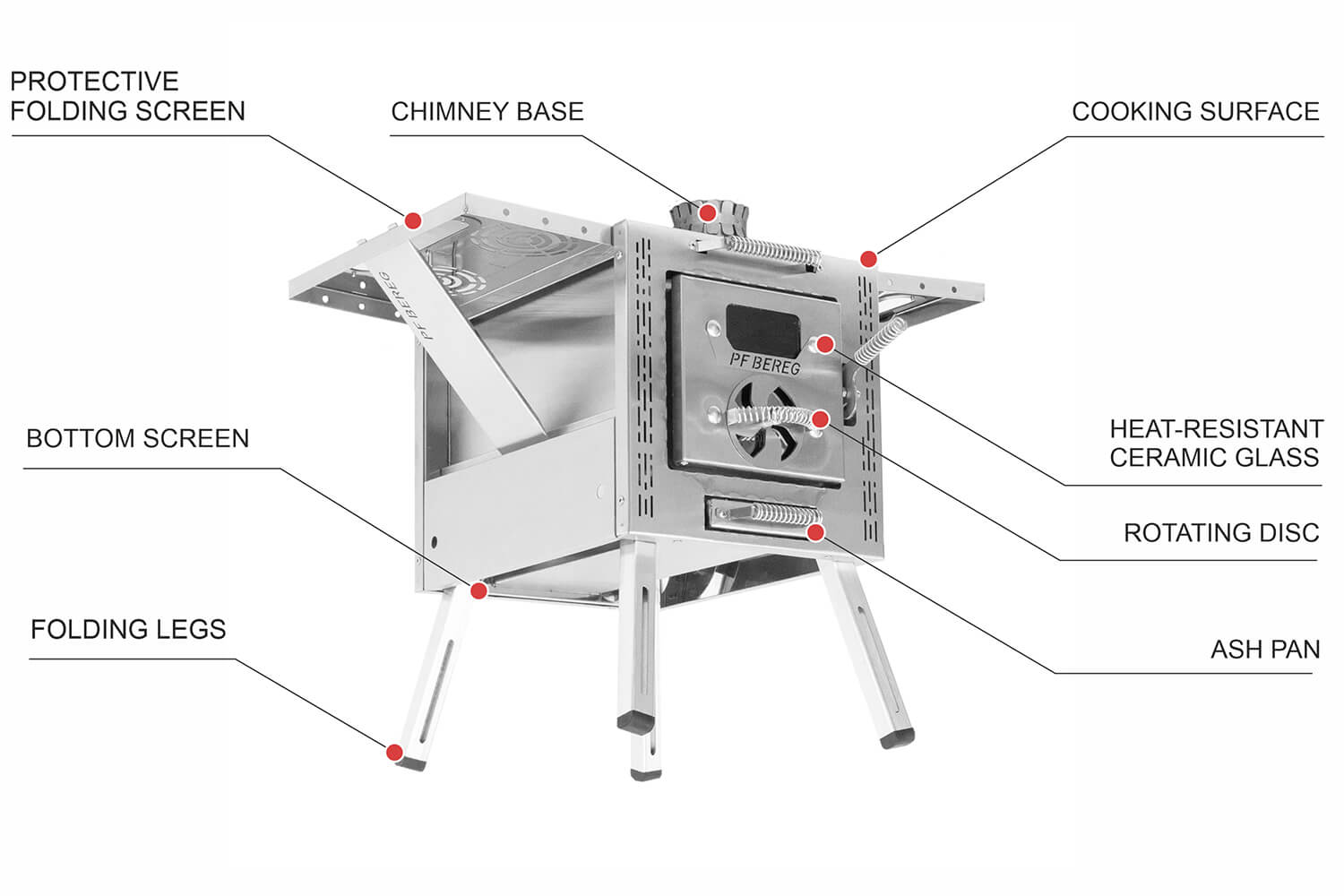

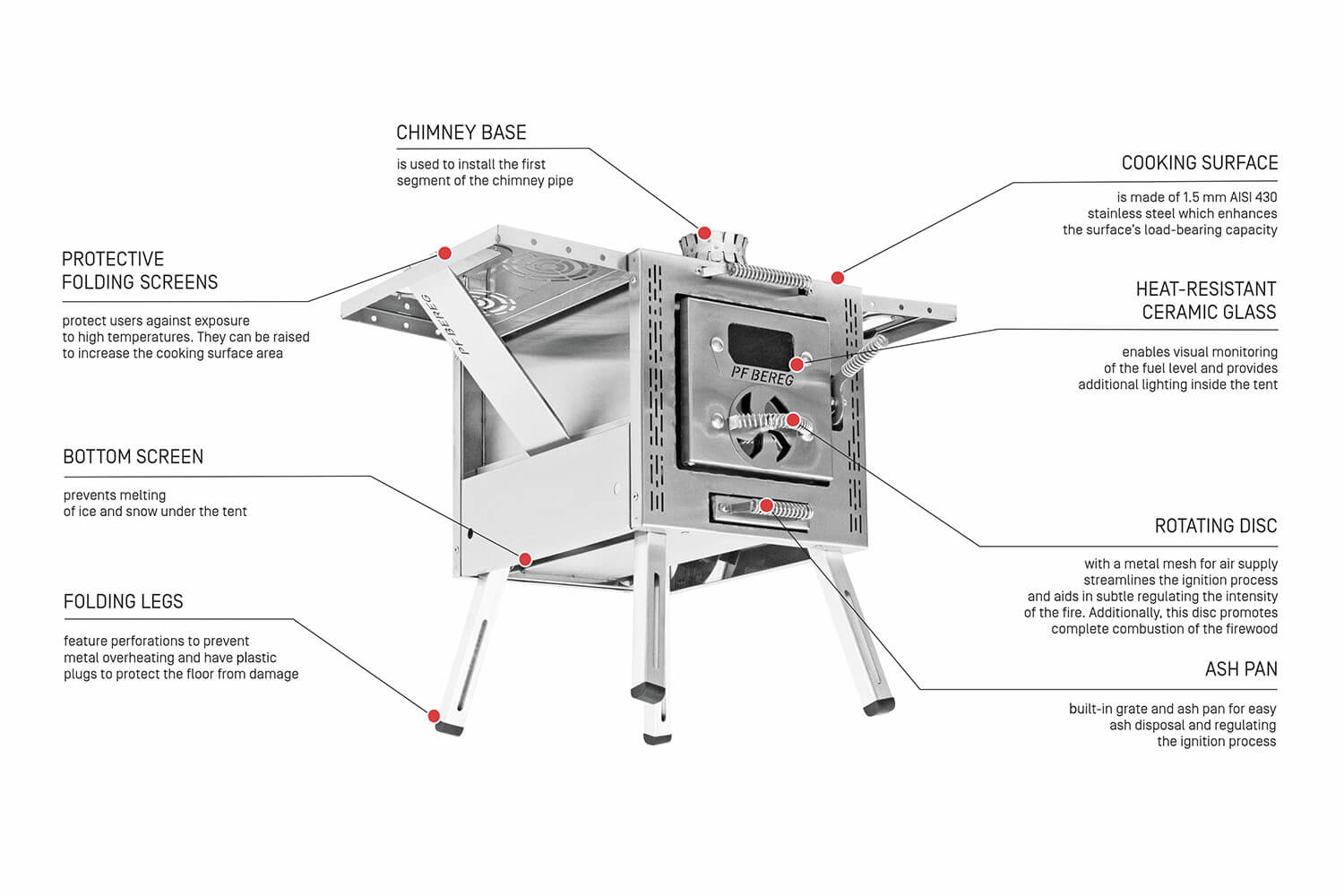

• Folding legs are perforated to prevent overheating and fitted with plastic plugs to protect the tent floor from damage.
• Cooking surface of the tent wood stove is made of 1.5 mm thick AISI 430 stainless steel. This material enhances the surface’s load-bearing capacity.

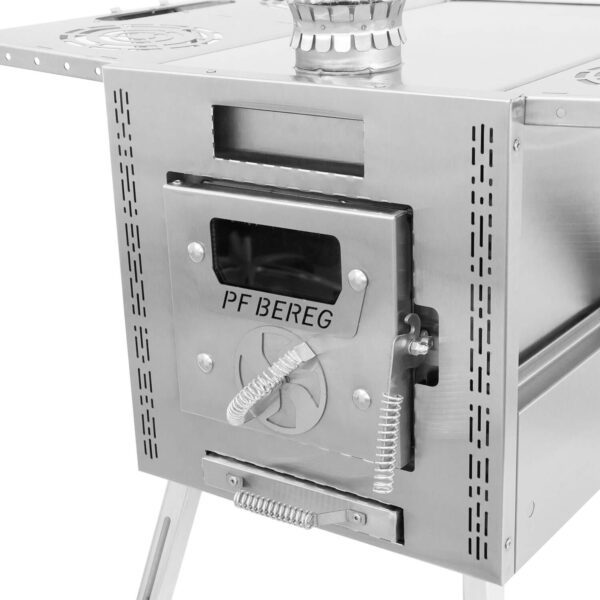

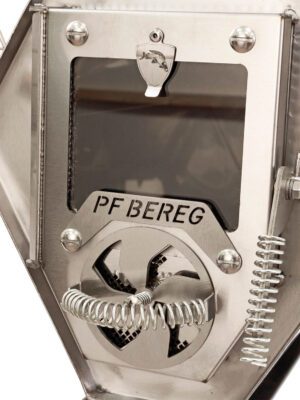

• Rotating disc with a metal mesh regulates air supply, streamlining ignition and allowing for fine-tuned control of the fire’s intensity. This design also promotes complete combustion of firewood.

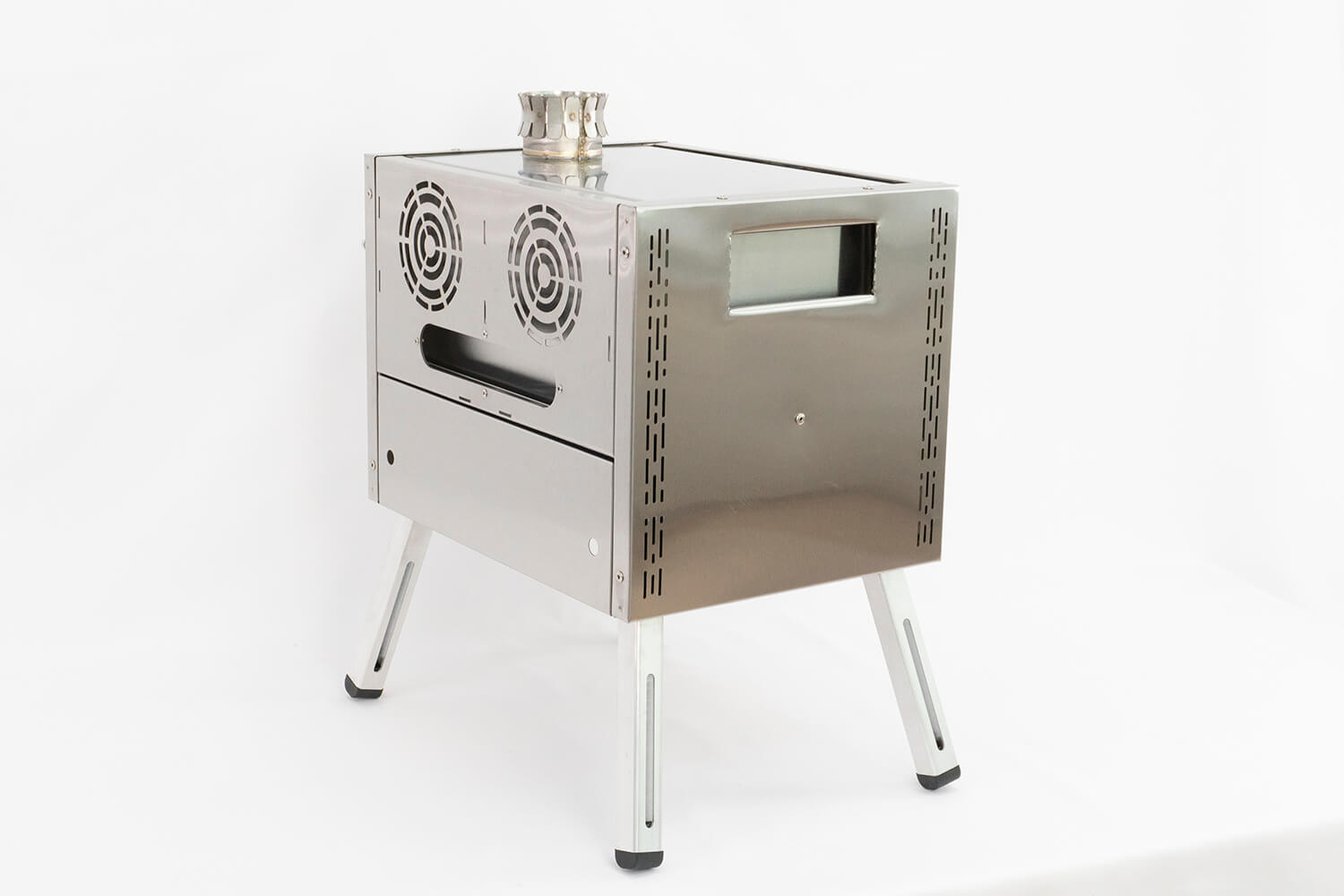

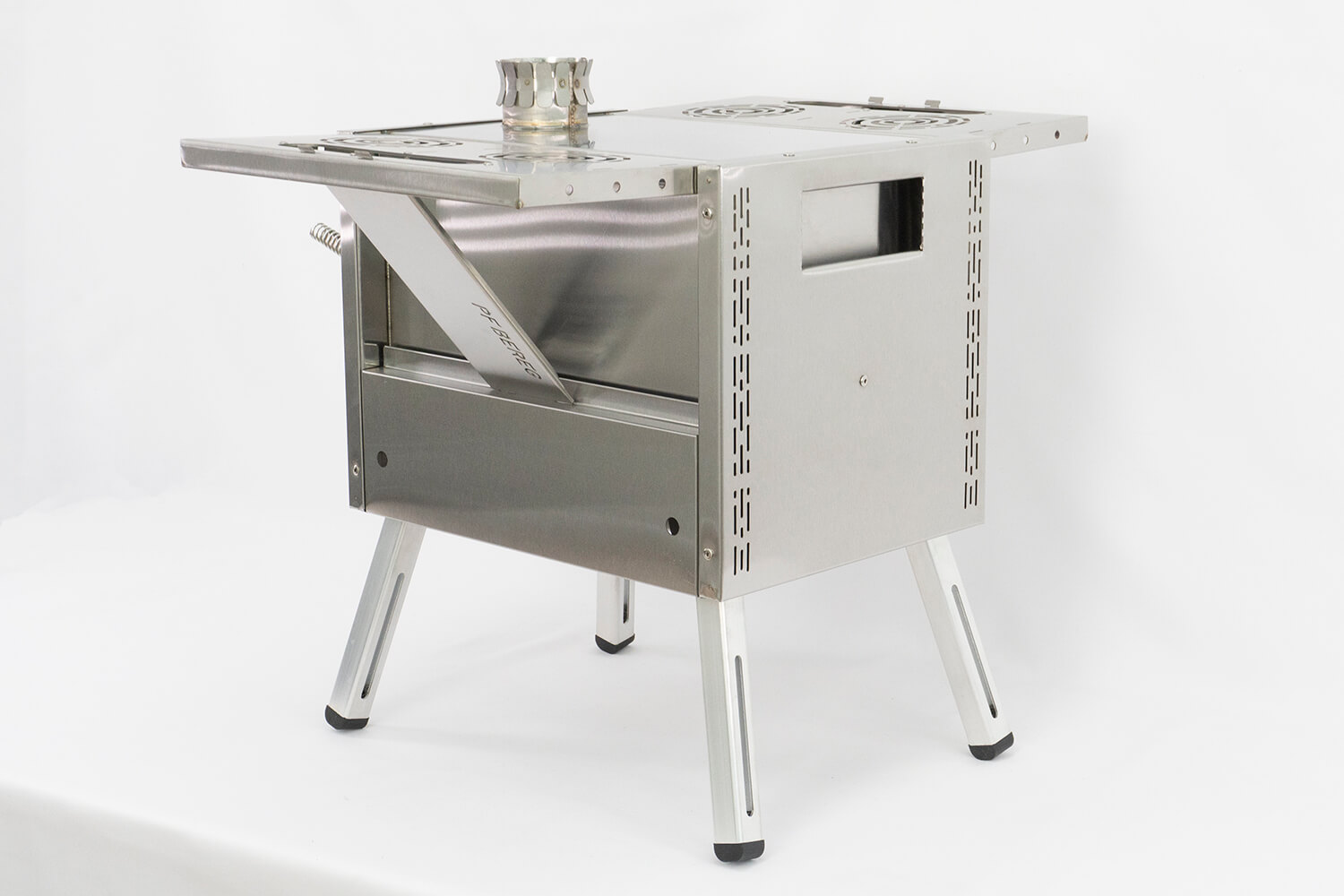

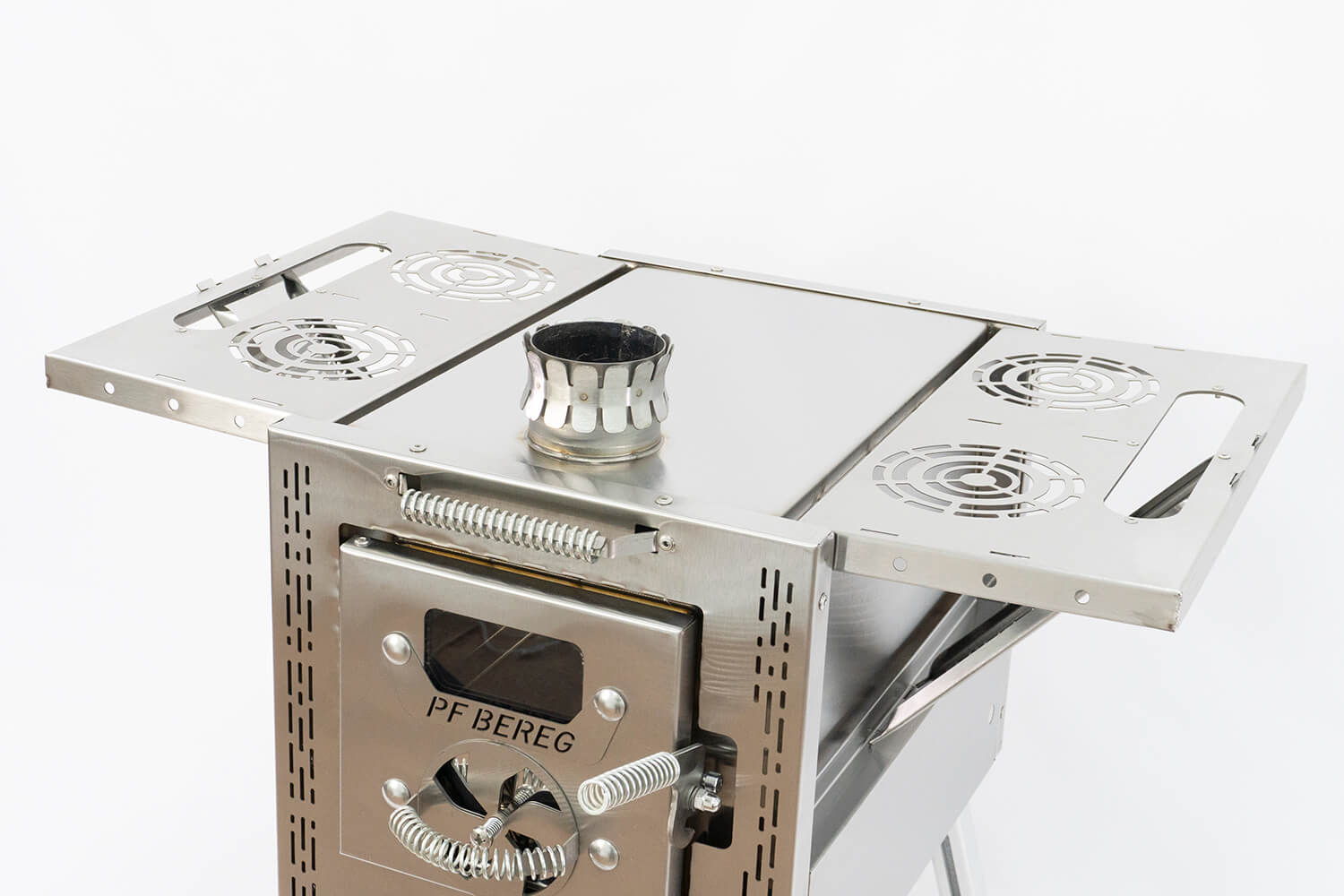

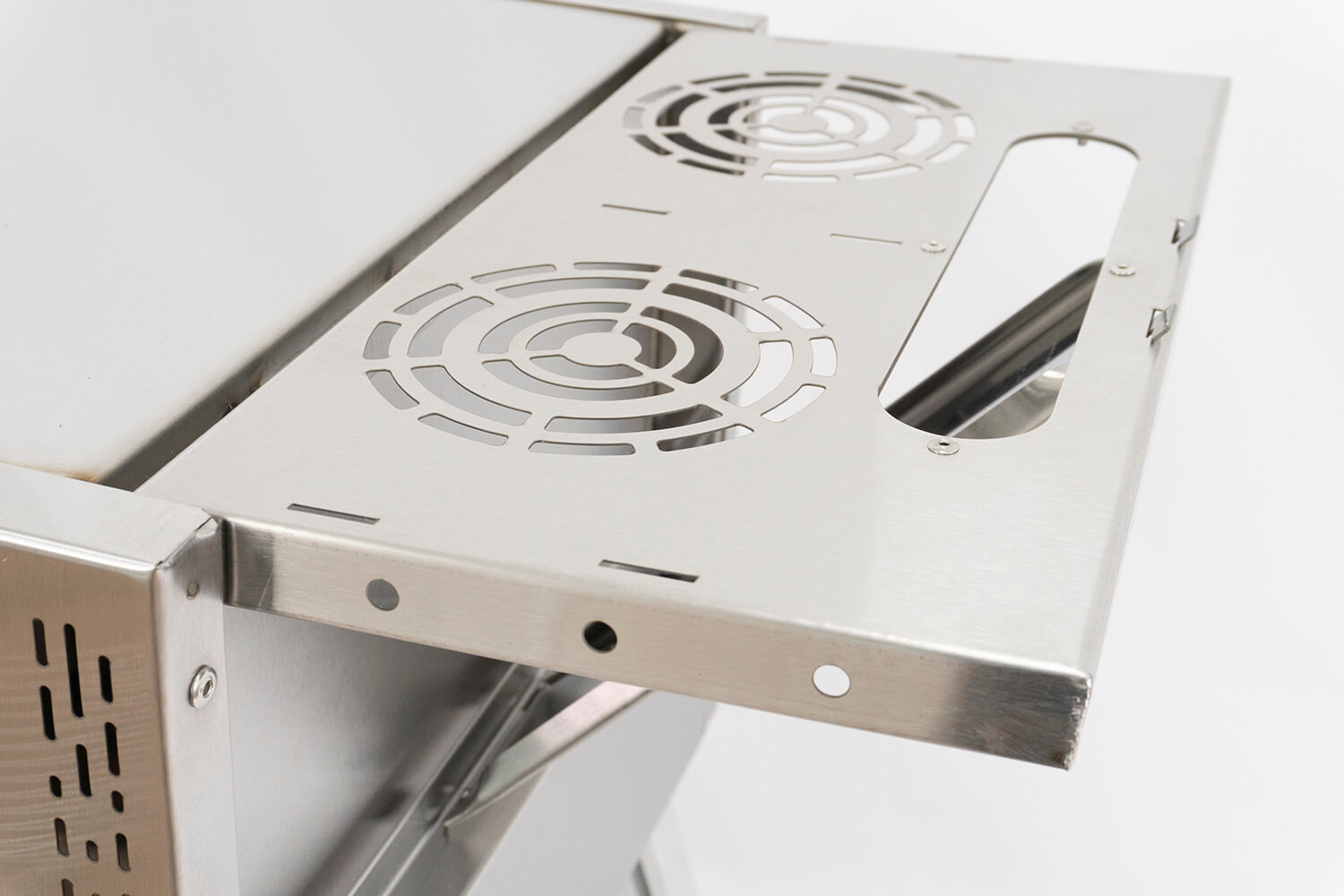

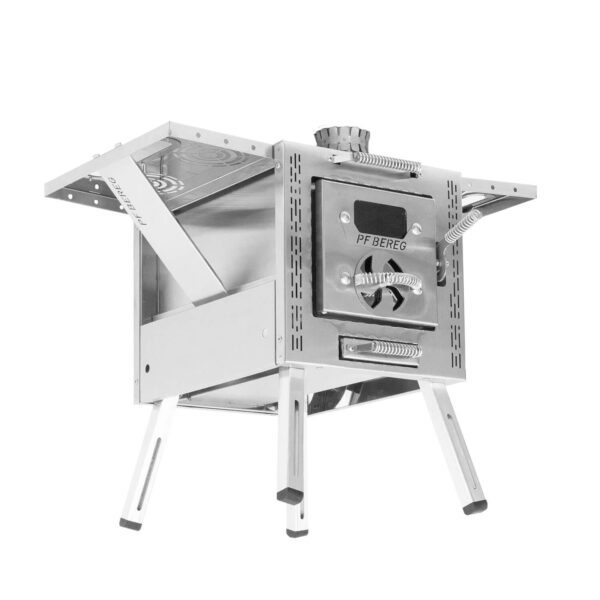

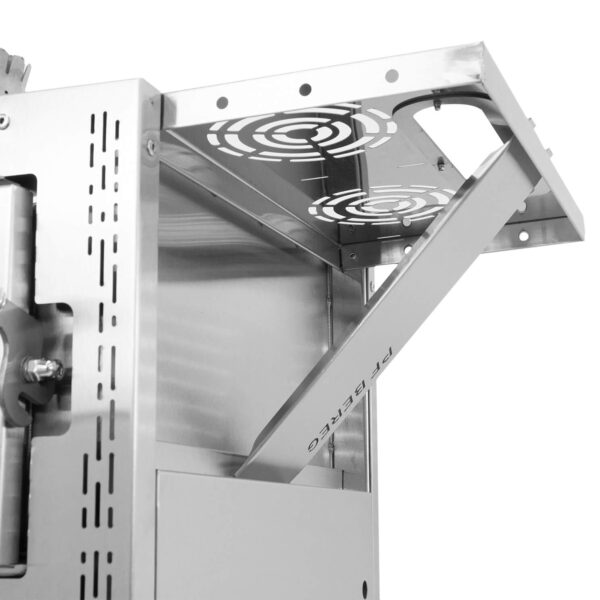

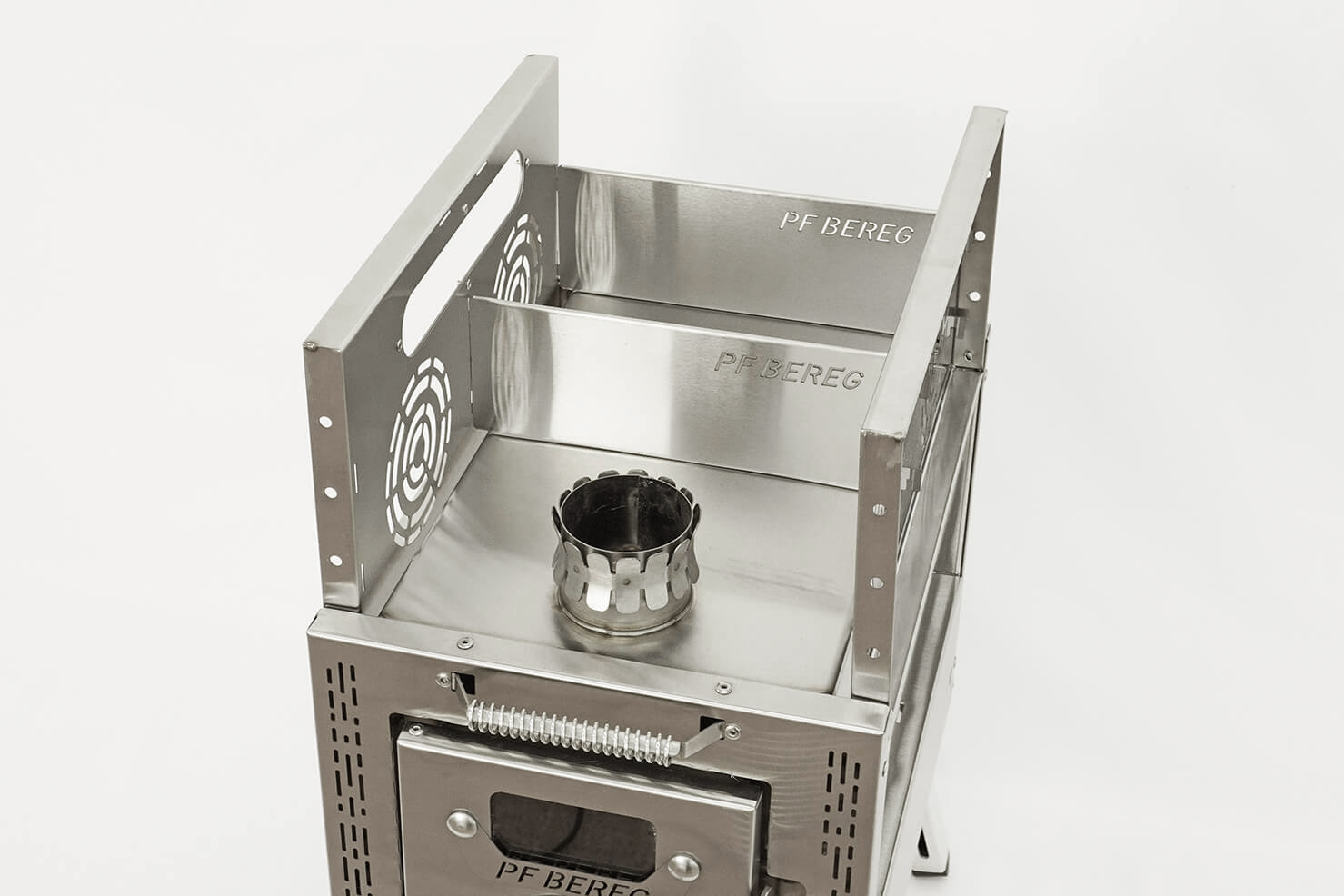

• Protective screens are positioned on the sides, bottom and back. The folding side screens can be raised to increase the cooking surface area.
• Heat-resistant ceramic glass insert in the door allows visual monitoring of the fuel level and provides additional lighting inside the tent.
• Metal cables stabilize chimney pipes, preventing their shaking during wind gusts.

• Spark arrester is located inside the firebox of the tent wood stove and divides it into two sections. It extends firewood burning time to 4-8 hours (depending on the model). It also improves heat distribution within the tent and protects the outer tent fly from sparks.
• Full argon welding of the firebox seams enhances its tightness.
• Built-in grate and ash pan facilitate easy ash removal and help in regulating the ignition process.

Double air supply regulation system

PF Bereg wood stoves feature a double air supply system that includes a rotating disc and an ash pan at the bottom. You can use both components together or select only one for regulating the burning intensity.

The combustion mode is chosen depending on the type and moisture content of the fuel, weather conditions and the required heat output.

1. Maximum combustion mode
This mode is achieved when both the ash pan is pulled out to the MAX mark located on the right-side wall of the ash pan and the rotating disc is opened fully.

2. Long burning mode
This mode is controlled by the rotating disc on the door. The ash pan must be completely closed in this mode.
The burning in the stove stops when both the rotating disc and the ash pan are closed.

The tent wood stove is made of 1 mm thick AISI 430 stainless heat-resistant steel. This material features some properties, such as high corrosion resistance, the ability to withstand temperature fluctuations and reliable weldability. This optimal thickness ensures both a long service life and manageable weight.

The cooking surface is made of 1.5 mm thick AISI 430 stainless steel. It increases the load-bearing capacity to the upper part of the stove, so you can use large pans or kettles for cooking.

Laser welding is used to enhance the firebox’s airtightness. The manufacturer provides a 3-year warranty against burn-through and a 1-year warranty covering manufacturing defects of the tent wood stoves.

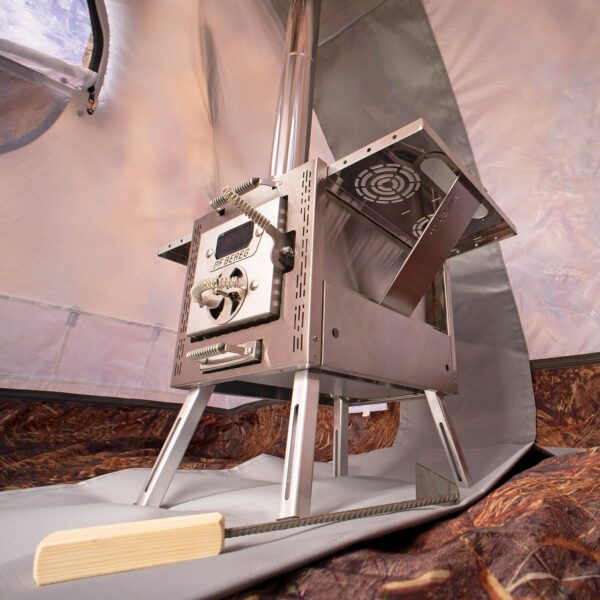

PF Bereg tents include a heat-resistant stove jack in the upper section. It features a pocket for a specialized metal insert with an opening sized for wood stove pipes, facilitating safe stove pipe output.

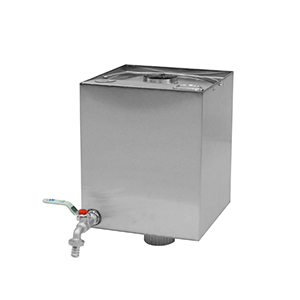

An optional PF Bereg water tank is available for water heating in either 7-liter or 12-liter capacities. The choice of volume depends on the diameter of the stove’s chimney.

The tent wood stove set includes gloves for handling hot things. Always wear these gloves when opening the stove door or touching the stove body.

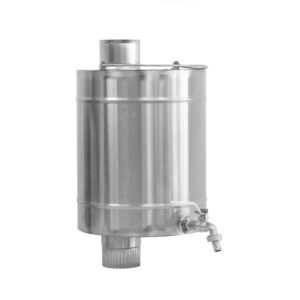

Water tank is used for heating water during travel. It is made of durable 1 mm thick AISI 430 stainless steel. The tank includes a ball valve and a convenient bag for transporting.

• 7-liter water tank with a 65 mm output is compatible with the stove Atom Small.
• 12-liter water tank with an 80 mm output is compatible with the stoves Atom Medium and Large.

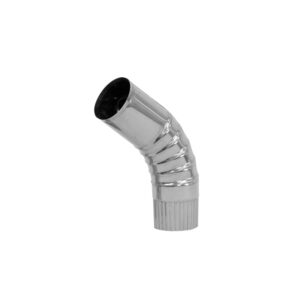

Swivel bend allows optimizing chimney pipe positioning inside the tent and protects against rain when installed as a final segment of the chimney inside the tent.

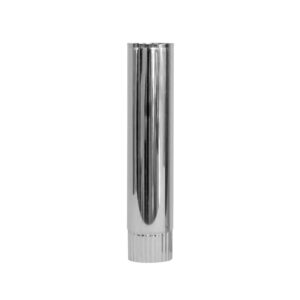

Composite pipe extends the length of the chimney. It is used if the tent is too tall and the stove set pipes are insufficient for proper exhaust.

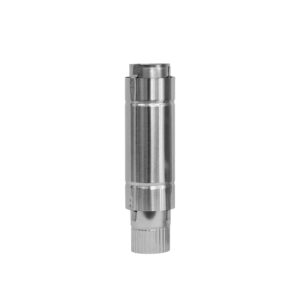

Isolated pipe features a sandwich-type construction with a protective screen around it. It is made of heat-resistant stainless steel. The isolated pipe serves as the chimney’s first section, providing essential burn protection.
